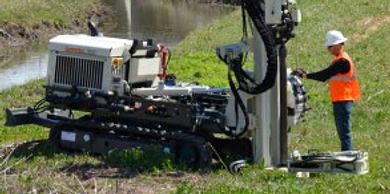

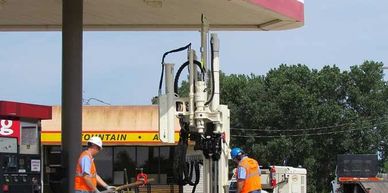

2019 GEOPROBE 7822DT V3 Tier IV Final
Capabilities
Specifications
Specifications
- Mud Rotary 400' - Up to 9" diameter
- Air Rotary 400' - Up to 9" diameter
- Hollow Stem Auger - 150' 4.25" i.d. / 100' 6.25 i.d.
- Wireline Core Drilling - 300' NW Rod
- Direct Push - DT22 up to 100', DT37 up to 50'
- GH 63 Geoprobe Percussion Hammer
- Lateral Movement (side-to-side) ± 7 degrees from centerline
- Oscillation ± 13 degrees from vertical
* Capabilities vary depending on drilling conditions
Specifications
Specifications
Specifications
- Drillhead Torque 4,000 ft lbs 4-Speed
- Drillhead RPM 0-750 RPM
- Pullback 48,000 lbs
- Push Down 36,000 lbs
- Rear Stabilizer Lift 2,000 lbs
- Rear Blade Width 60"
- Ground Speed 0 - 5 mph
- Surface Load 4.6 lb/in
- Track Width 12 in 305 mm
- Main Winch 2500 lbs
- Wireline Winch 1100 lbs
- Drillhead Travel - Net Stroke 78"
Dimensions
Specifications
Dimensions
- Length - 11' 5"
- Width - 5' 10"
- Travel Height - 10.5'
- Weight - 8,000 lbs (unloaded)
- Height Mast Up - 13'3" to 20"
2019 GEOPROBE 7822DT V3 Tier 4 Addtional Info
Geoproble 7822DT V3 is a versatile rubber track mounted LAR that performs direct push, mud rotary, air rotary, rock coring, hollow stem auger, CPT, direct image functions and more.
- Tier 4 Final Engine
- 60-in. Direct Push Tooling
- Probe Rod Sizes: 3.75 in., 3.5 in., 3.25 in., 2.25 in., 1.5 in., 1.25 in.
- Direct Image® Tooling, OIP, EC, MIP, LL MIP, MiHpt, HPT, CPT, and PST
- Macro Core® MC5 Soil Sampling
- DT22 Soil Sampling
- DT325 / DT35 / DT375 Dual Tube Soil Sampling
- SP22 Groundwater Sampling
- SP16 Groundwater Sampling
- 2.0 in., 1.5 in., 1.0 in., 0.75-in. Prepacked Monitoring Well Installations
- 4.25 in. and 6.25 in. HSA System
- DH103 140 lbs SPT Autohammer calibrated by SPT CAL
2017 Simco 2800 HT PTO 4x4 Tier 4
Capabilities
Specifications
Specifications
- Mud Rotary 400' - Up to 9" diameter
- Air Rotary 400' - Up to 9" diameter
- Hollow Stem Auger - 150' 3.75" i.d. / 100' 6.25 i.d.
- Core Drilling - 300' NQ Rod / 500' AQ rod
* Capabilities vary depending on drilling conditions
Specifications
Specifications
Specifications
- Drillhead Torque 8,500 ft lbs 4-Speed
- Drillhead RPM 0-670 RPM
- Pullback 12,000 lbs
- Push Down 12,000 lbs
- Main Winch 4500 lbs
- Auxiliary Winch 2550 lbs
- Drillhead Travel - Net Stroke 11’
- Wireline Winch 1300 lbs
Dimensions
Specifications
Dimensions
Length - 26'
Width - 8'
Height - 10'
Height tower up (lowest drill height) - 20.5'
Height tower up (fully extended) - 29'
Weight - 19,500 lbs.
